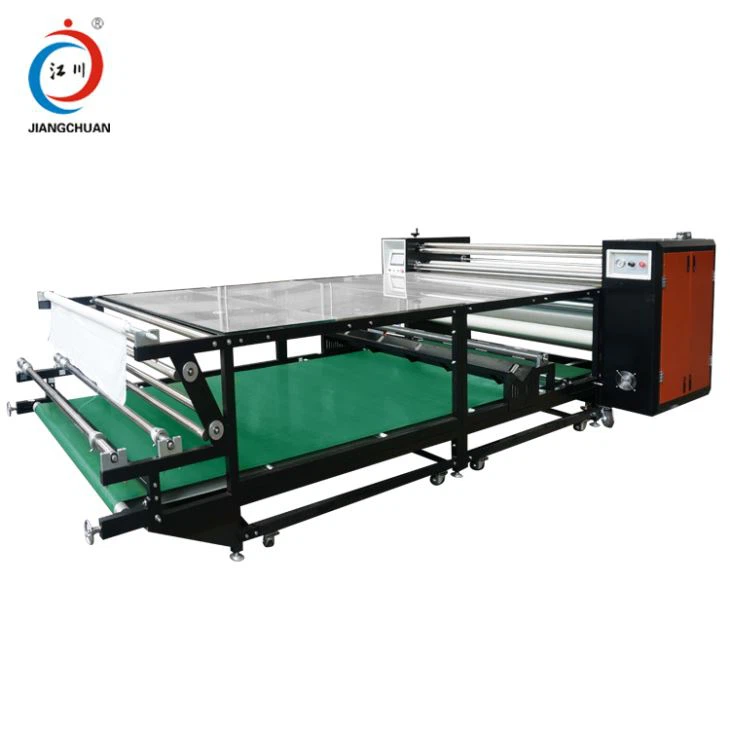

Oil Drum Rotary Heat Press
Specification
| No. | JC-26B |
| Brand Name | Jiang Chuan |
| Item Name | Heat Transfer Rotary |
| Printing/drum width | 1700 mm 67 inch |
| Roller diameter | 420 mm 16.5 inch |
| Voltage | 220V/380V/440V/480V |
| Rated output | 25.5 KW |
| Speed | 0-8m/min |
| Weight | 1800 KG |
| Packing size | 2630 x 1390 x1600 mm |
| Feeding Method | Top feeding |
| Working Table | Including |
| Other Size | Available |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High temperature resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Drum | Oil 100% |
| Temperature range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Color | Customized |
Characteristics
1) The electric control adopts latest technology that allows separation of the machine body and the blanket automatic, with a power failure protection functions.
2) It is applicable to all over or piece hot press, with a 2-3 times higher work efficiency.
3) Electronic digital terminal temperature control and motor frequency conversion digital speed regulation, with high accuracy (±1-2°C).
4) Drum surface with chrome plating, high hardness and good printing performance, wearable and stickiness-proof.
