Description
Technical Parameters

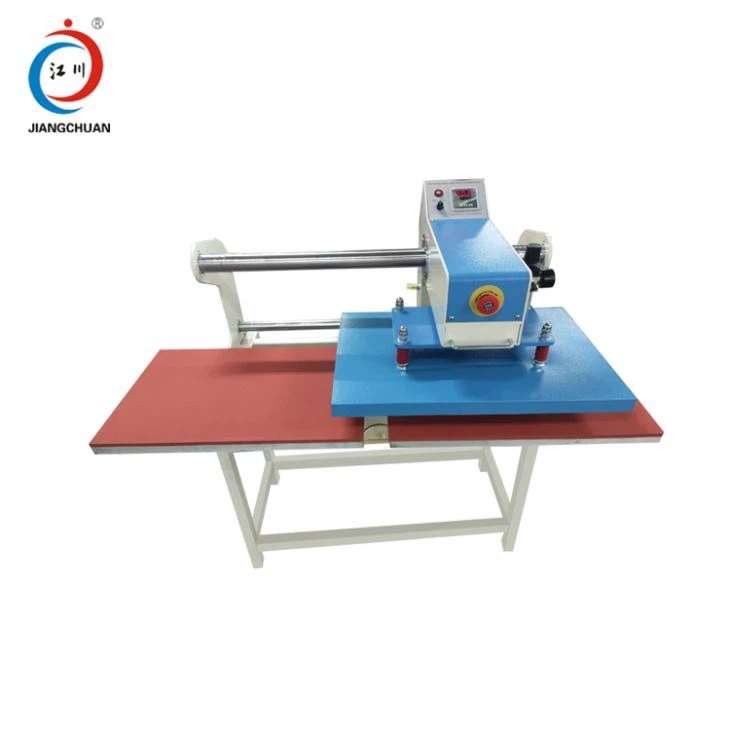

40x60 Heat Press Machine
Machinery Parameter
| Machine NO. | JC-7A-2 |
| Print area(CM) | 40*60 |
| Voltage(V) | 110/220V |
| Power(KW) | 3.5 KW |
| Temp Range(°C) | 0-399 |
| Time Range (S) | 0-999 |
| weight (KG) | 102 kg |
| Packing Size(CM) | 102*70*90 CM |
| Recommend compressor | Required |
| Color | Customized |
| Bottom plate | Push-pull |
Feature
1. Stable running, deforming free and low noise
2. Fully digital temperature & Time control
3. Teflon-coated thick heating platen, speed & even heater technology
4. Pull-push type work bench saves labor and provides high transfer speed
How to operate
1. Connect with air compressor gas connector, open air pressure, the heating plate the pressure gauges modulation(4pb- 6Pb) rising pressure adjustable up to 8Pb.
2. Plugged in, turn on the power switch, power indicator light was significantly brighter.
3. Machine ready to enter the work state, please be substrates flat on the workbench, and then stacked on transfer paper(Note: the front and back of the transfer paper)
