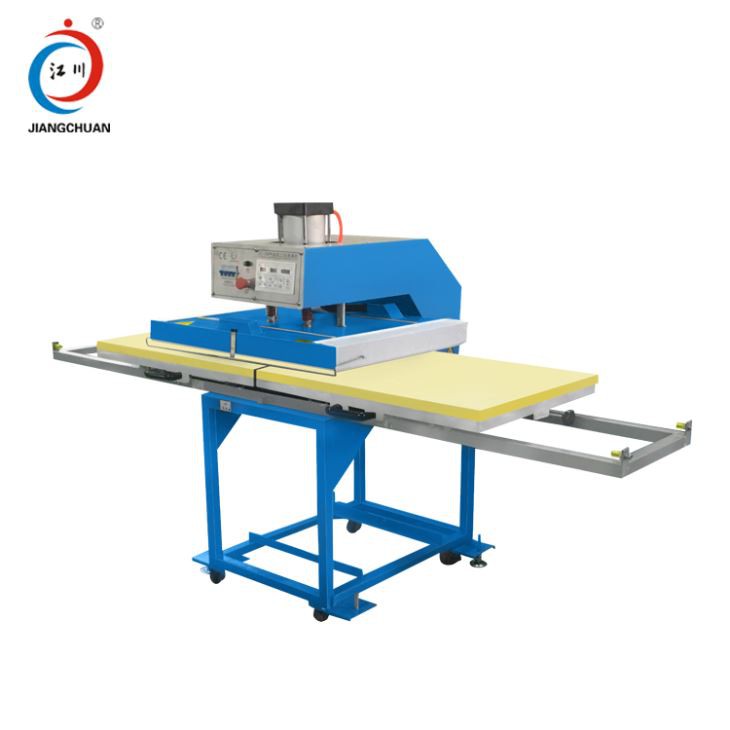

Heat Press Transfer Machine Clamshell
Machinery Parameter
| Model | JC-7A |
| Product name | Double stations pneumatic heat transfer machine |
| Heat plate size(cm) | 50*70 |
| Power(kw) | 5.4 |
| Voltage(v) | 110/220 |
| Weight(kg) | 85 |
| Temp range(℃) | 0-399 |
| Time range(s) | 0-999 |
| Pre-heat up time | About 15 minutes |
| Packing size(cm) | 85×77×158 |
| Certification | CE&SGS |
| Advantage | Most practical and classic model,entry level,good for beginner |
High pressure machine Product Feature:
1, electronic digital temperature and time, the double screen display, more humanized design;
2, microcomputer control, constant temperature time, automatic control, time pressure adjustment is convenient, the pressure can be up to 8 kg/CM;
3, high temperature resistant thickening silica gel pad use baking even the printing pressure and 400 degrees of deformation;
Note
1. The press must be reliable grounding, can put into work, to ensure safety in production operation.
2. Air pressure should choose appropriate, don't disorderly adjustment pressure valve, in order to avoid pressure too much damage to the machine.
3. It is strictly prohibited in the process of ironing below the handle knob stretch into the heating plate, so as not to cause burns.
4. In the process of press, in case of special circumstances, can press the urgent stop switch, cut off all the power and heating plate automatic rise, can avoid the accident.
5. End of the work, staff leave must cut off the total power supply, air switch is closed .
