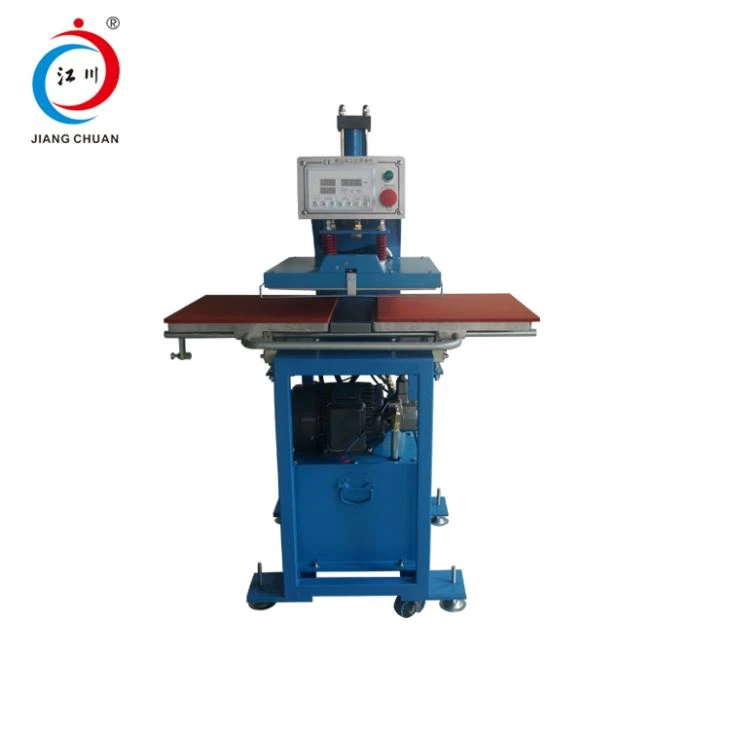

40x40 cm Hydraulic Heat Press
Technical Parameters
| Machine NO. | JC-7E |
| Transfer area(CM) | 40x40 |
| Voltage(V) | 220/380,three-phase |
| Power(KW) | 2.2 |
| Temp Range(°C) | 0-399 |
| Time control (S) | 0-999 |
| Gross weight (KG) | 170 |
| Packing dimensions(CM) | 85x75x158 |
| Color | Usually is blue,special color can be customized |
（1）The casting heating aluminum plate ,non-stick Teflon coated upper platen,it’s even heating and durable.
（2）This machine with hydraulic system makes noise smaller,you no need to buy air compressor,and pressure is adjustable,maximum pressure can reach 30Kg/cm²,so it’s excellent for applying transfer to all type materials.
（3）Springs on the heating plate to ensure pressure more even and transfer effect better.
Specifications:1.Digital display of temperature and time.
2.220/110V
3.With protecting device.
