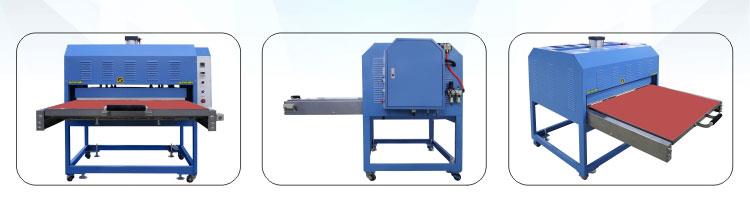

Flat Garment Heat Press Machine
Machinery Parameter
| Product Name | Pneumatic single Working Stations Large Size Heat Press Machine |
| Model NO | JC-8A-1 |
| Size | 120*150CM |
| Power | 16KW |
| Voltage | 110V/220V/380V |
| Package size | 200*140*165CM |
| Gross weight | 750KGS |
| Feature | Single working tables faster and convenient for printing+Popular type with higher pressure suitable for large sizes printing materials |
| Note:Printing size above 120x150cm is coming with foam sponge ,without silicon sheet |
Features
1. Electronic equipment control the temperature, very accurate and prevent over printing.
2.The heated thread and heated board are together safe and durable heat distribution.
3.The heating board is pure aluminium.The printing function is perfect
4.The electronic time controller shows working time, automatic sound alarm when the presented time comes.
5. Adjust the working pressure anytime, convenient, fast.
6.one working platen heat transfer printing, designed for high productivity with materials ranging from T-shirts to hard ceramic tiles.
Maintain
1. When the heating plate is not or uneven heating after setting temperature, should check the thermostat and thermocouple, if the thermostat shows “1”, you should replace the thermocouple
2. Time: When the switch to "manual", press the "manual start" will not be pressed down, then check the "manual" switch, when the switch to "automatic", the platen in place will not be pressed down , should check the contact switch is in place, if not, adjust it.
3. In case of quality problems promptly contact with the company
