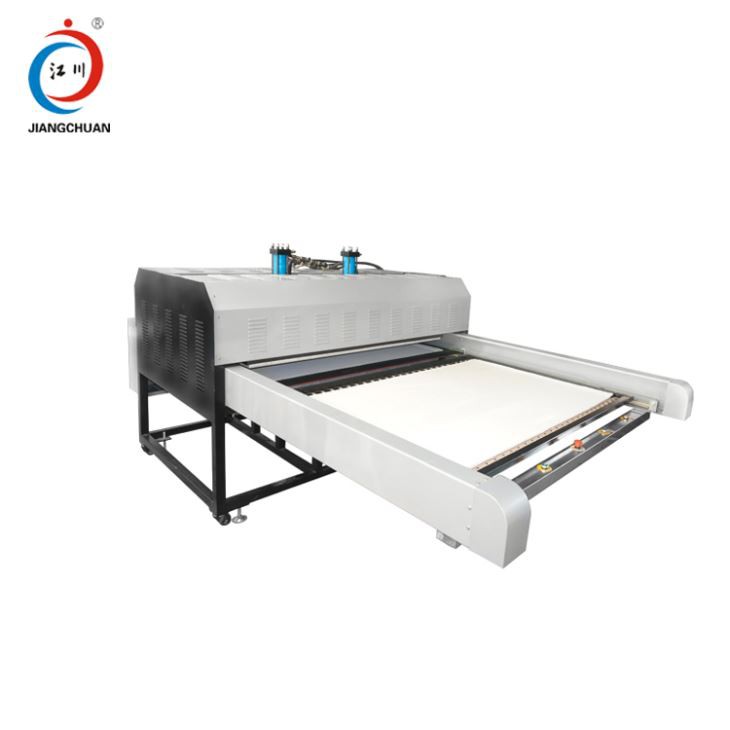

Flatbed Heat Transfer Machine
Feature of Flatbed Heat Transfer Machine
1.Employ single-side and work in upward and downward circulating to get an effect of saving labor and high printing speed.
2. Using cast aluminum for the bottom board, it is flat and good for heat press of many kinds paintings.
3.Manual or automatic control, the adjustable pressure of pneumatic machine can reach 8kg/cm2, and the pressure of hydraulic can reach 30kg/cm2.
4.The process is controlled by digital, saves power and the thermal energy distribute averagely.
5.Intelligent instrument and digital display of temperature and time, the readout temperature tolerance of which is +-2°C.
6. Adjust the temperature and the timer according to the thickness of the materials. For example, heat sublimation canvas bag need higher temperature(about 230℃) and longer time(about 24sec.)
Machinery Parameter of Flatbed Heat Transfer Machine
| Model No. | JC-8B-2 Flatbed Heat Transfer Machine |
| Printing Area | 39"*47"(100*120CM/2) |
| Weight(KG) | 750 |
| Power(KW) | 16 |
| Voltage (v) | 220/380 |
| Packing size(CM) | Main engine 196*142*180 Track 310*161*33 |
| Under Plate | Push-pull |
| Temperature Range (℃) | 0-390 |
| Time Range(s) | 0-390 |
| Blanket | Nomex Material of Dupont Brand |
