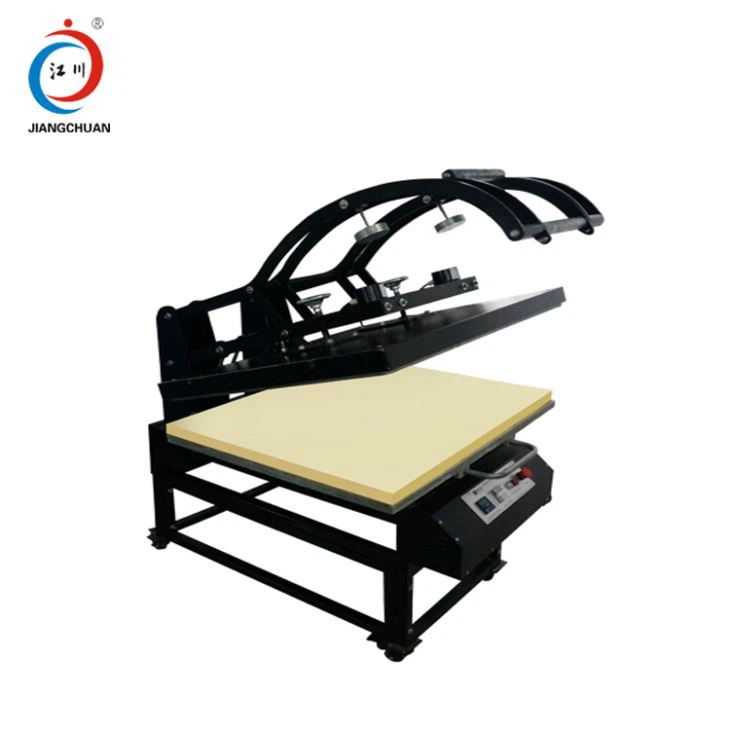

Large Format Auto Open Heatpress
Feature of Large Format Auto Open Heatpress
1 It used special precise winding tube technique,can effectively guarantee the even and stable temperature.
2 The temperature and time are wholly controlled by electronic;the signal indication is convenient to use.
3 The surface of heating plate can bear high temperature;smooth surface and high strength;fine heat
pressing effect,and easy to clean.
4 Spiral pressure design can adjust to the required working pressure randomly.The surface of bottom plate
will be set with resistant high temperature silica rubber plate,which makes all heat transfer articles more perfect.
Specification of Large Format Auto Open Heatpress
| Model | JC-5C-2 Large Format Auto Open Heatpress |
| Printing area | 100*100 |
| 39"*39" | |
| Weight(KG) | 420 |
| Packing size(CM):L*W*H | 155*103*125 |
| Power(KW) | 9.5 |
| Voltage(V) | 220/110v |
| Temp. range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Heating Plate | Fixed |
| Under Plate | Moveable |
| Recommend compressor | No Required |
| Warranty | 1 Year |
| Note | Custom size by your special order. |
| Customized machine to work with different power supplies |
Service of Large Format Auto Open Heatpress
1.Free lifetime technical support on all heat presses.
2.One-year warranty on entire press & parts.
3.One-year warranty on castings and welds.
