Description
Technical Parameters

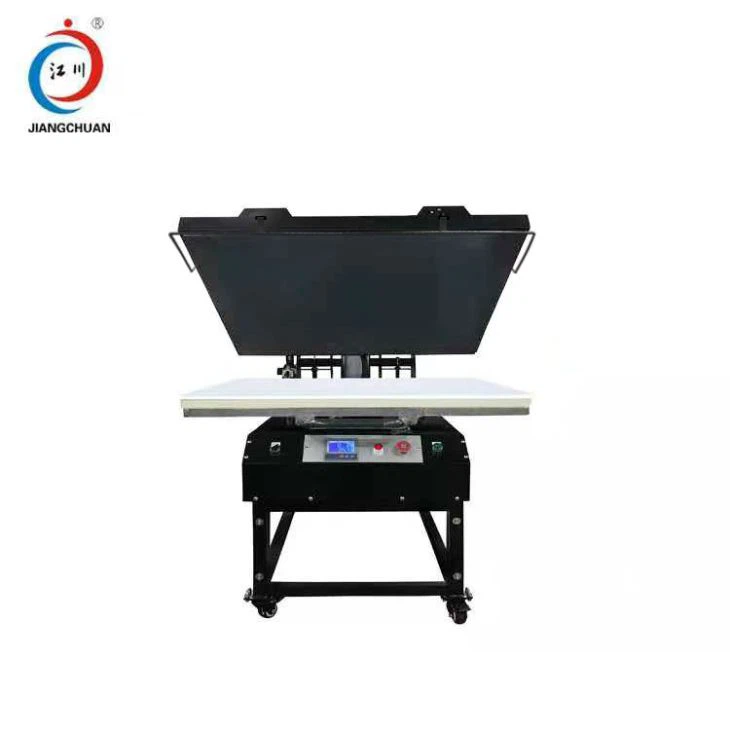

Large Format Heatpress
Specification of Large Format Heatpress
| Model | Large Format Heatpress |
| Print area(CM) | 100*100 |
| Voltage(V) | 220/380 |
| Power(KW) | 9 |
| Temp Range(°C) | 0-399 |
| Time Range (S) | 0-999 |
| Weight (KG) | 280 |
| Packing Size(CM) | 165*110*160 |
| System | Pneumatic device |
| Color | Black |
| Recommend compressor | Required |
| Worktable | Single station |
Product Description of Large Format Heatpress
1. Temperature controller adopt imported components,high accuracy.
2. Digital time controller with signal indication when it finishes working.
3. The heating plate is wrapped with high temperature cloth,clean and convenient,long life service.
4. The pressure can be adjusted casually.
6. The bottom plate is laid with high temperature silica sponge,wide presses range.
7. The radiation pipe and the heating plate in whole,short heating time,even temperaure,widely used in factory operation line.
