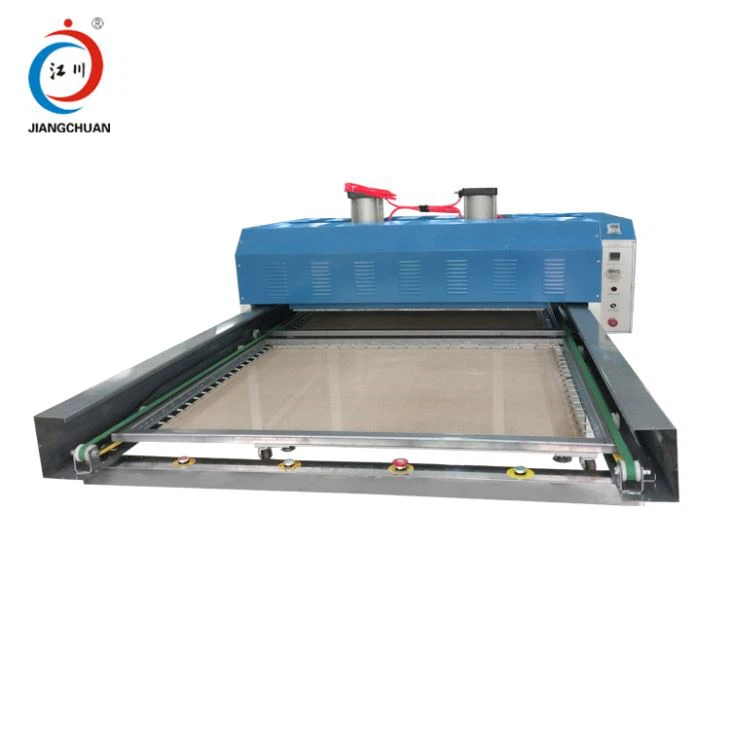

Sublimation Press Large Format
Characteristics of Sublimation Press Large Format
| Brand Name | Jiangchuan |
| Model No. | JC-8B-1 |
| Printing area | 39"*47" (100*120CM2) |
| Weight(KG) | 590 |
| Packing size(CM): | Mainframe 196*142*180 |
| track 308*161*33 | |
| Power(KW) | 16 |
| Voltage(V) | 220/380 |
| Temp. range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Recommend compressor | Required |
| Power system | Pneumatic |
| Recommend compressor | Required |
| Under Plate | Push-pull |
| Other Size | Custom size by your special order. |
Feature of Sublimation Press Large Format
1.Intelligent and easy-to read display for temperature and timer
2.Over-the-Center Pressure Adjustment for even, edge-to-edge heat and pressure
3.Dual sliding tables greatly improves working efficiency (available for opposite/same direction)
4.Even pressure, available for Pneumatic or hydraulic for garment, flat, ski or metal plate etc..)
5.Self-leveling heater block assembly, solid loading bed with ultra thick padding
6.Heavy duty locking casters for easy movability and solid support
7.Stable and excellent performance, production according to CE rules
8.Double-side heating is available upon request (for double side printing at the same time)
9.Smooth shock opening, Teflon coated non-stick heat platen
