Specification

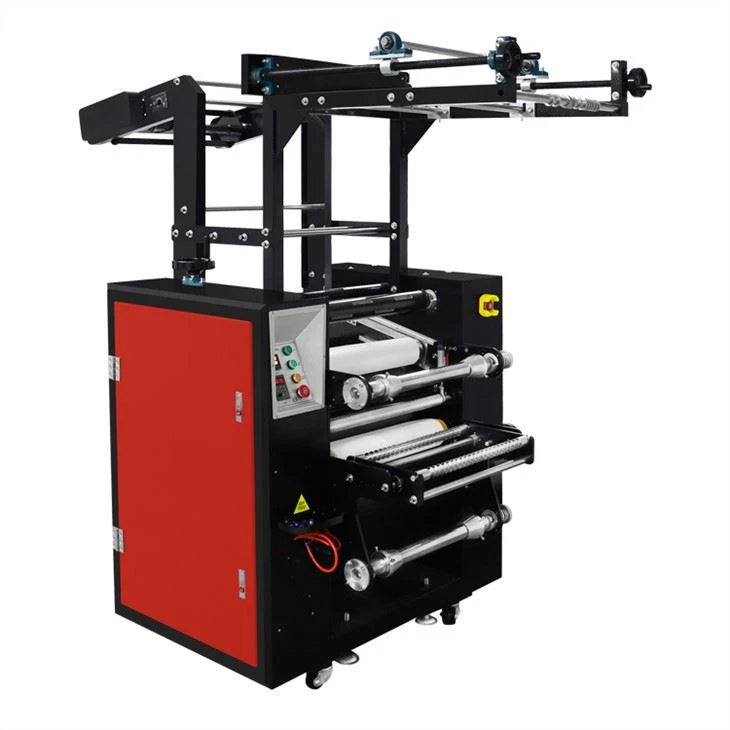

| Machine Name: Roll to roll ribbon printing machine | |
| Roller Width(cm) | 60 |
| Roller Diameter(mm) | 210 |
| Power(KW) | 6KW |
| Voltage(V) | 220/380 3Phases |
| Packing size | 1302*2068*2087MM |
| Temp Range(°C) | 0-399 |
| Time Range (S) | 0-999 |
| Cusromized | Size,Color,Logo |
| Application | Lanyard,Ribbon,Cut piece |
| Blanket | Nomex:Gigh temperature resistance |
| Drum Surface | Chrome:high hardness and abrasion performance |
Highlight
1.The oil temperature heating technology circulates the thermal conductivity of liquid and averagely heating to avoid explosion.
2.With power-off protection function, blanket and roller can be individually separated.
3.Chrome plating in the roller, it is wear resistant, anti-sticking and transfer excellent.
4.It is double side sublimation lanyard.
5.It is top feeding for more accurate positioning.Special design for the air shaft for tissue paper.So one worker can change tissue paper easily(see following picture)
6.Auto blanket alignment
7.Heat insulation external oil tank-ensure the safety of worker's hand and can add oil easily in the future,when temperature go up,you can see oil level clearly.
8.Internal oil tank-for oil storage to keep machine and ground clean
