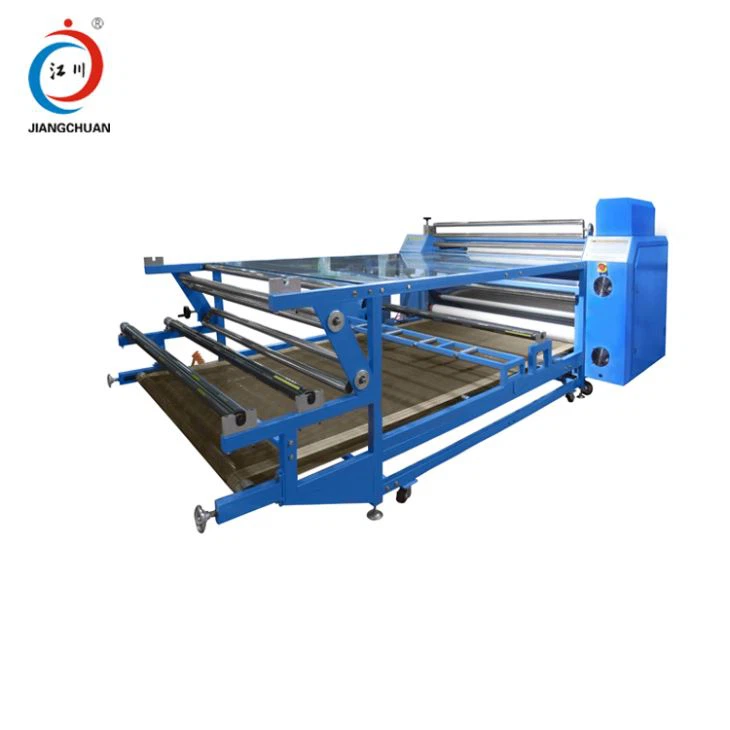

Calendar Roll Press
Technical Parameters of Calendar Roll Press
| Item | Calendar Roll Press |
| Model | JC-26B |
| Maximum Media Width | 1800mm |
| Blanket width | 1750mm |
| Diameter of Drum | 600 mm |
| Transfer Speed | 3M/Min |
| Reated power(KW) | 48 KW |
| Temperature Range | 0-399 |
| Time Range | 0-999 S |
| Working Table | Including working table |
| Fed-in media | Transfer paper,fabric,protective paper |
| Feeding Method | Top Feeding |
| Voltage / Heating Power | 220/380 Three phase four wire |
| Machine Size | 2670*1570*1700mm |
| Packing Dimension | 2840x1680x1900mm |
| Weight | 2200 KG |
| Scope of Delivery | Roller heat transfer machine, Power cable without plug, some electronic spare parts for free |
Feature of Calendar Roll Press
1.According to hunan machanics, change to upward material feeding, suitable for pack stamping, solve the
problems of difficult to align and receive materials, safe, reliable, greatly improve the produnction efficiency,
electrical control uses the latest advanced technology, machine cooling isn't required, blanket and cylinder
can be individually isolated, with power failure protection function.
2.Add new assembly line material receiving rack, convenient to put clothing on, safe and fast; multi-purpose, both
packs and pieces are universal;
3.Muiti-function design allows piece transfer, cutting and ribbon heat pressing, improving the efficiency by 2-3times.
4.Electronic digital temperature control, motor variable frequnency and digital speed regulation, high accuracy.
5.Chrome plated cylinder technology, high rigidity, wear resistant, anti-sticking,excellent transfer.
6.Employ advanced outside fuel tank recycle heating, Preheating in advance for saving labor, oil heating recycle
to ensure uniform heating.
7.Peripheral fuel tank, automatic shut-off valve, convenient to change heat transfer oil, highly safe, explosio-proof.
