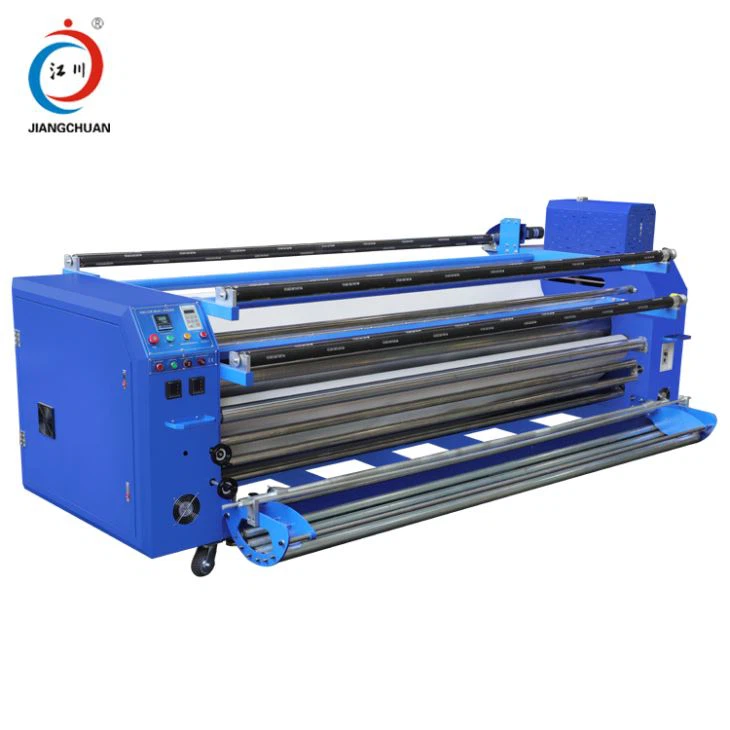

Roll To Roll Calendar
Specification
| Brand Name | Jiang Chuan |
| Printing/Roll Width | 3200 mm/126 inch |
| Roller diameter | 420 mm/15.7 inch |
| Voltage | 220/380 3 phases |
| Power | 48 KW |
| Speed | 0-8M/Min |
| Weight | 2500 KG |
| Packing Size | 429*231*203 CM |
| Feeding Method | Top feeding |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High-Temperature Resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Temperature Range | 0-399℃ |
| Scope Of Delivery | Roller heat transfer machine, Power cable without a plug, some electronic spare parts for free |
| Note | Custom size by your special order |
| Customized machine to work with different power supplier |
Features
· Oil heated drum. Self contained with digital heat control
· Digital variable speed control
· Automatic belt tracking
· Self locking safety chucks for all unwind/rewind bars
· “S” wrap bars for fabric tensioning
· Hand safety protection at entrance
· Lanyard controlled reversing system for safety & ease of feeding
· Dual Safety Reversing Systems
· Low maintenance, brushless drive motors
· Automatic cool down at shut down
· CE Certified
Our service:
1. We have our brand, currently, the sales region covers 38 countries and regions around the world. We specialize in this field for more than 18 years, with the strength of the market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
3. Reply to the inquiry in 24 working hours.
4. Experienced staffs answer all your questions.
5. Do the best quality and cheap price for you.
