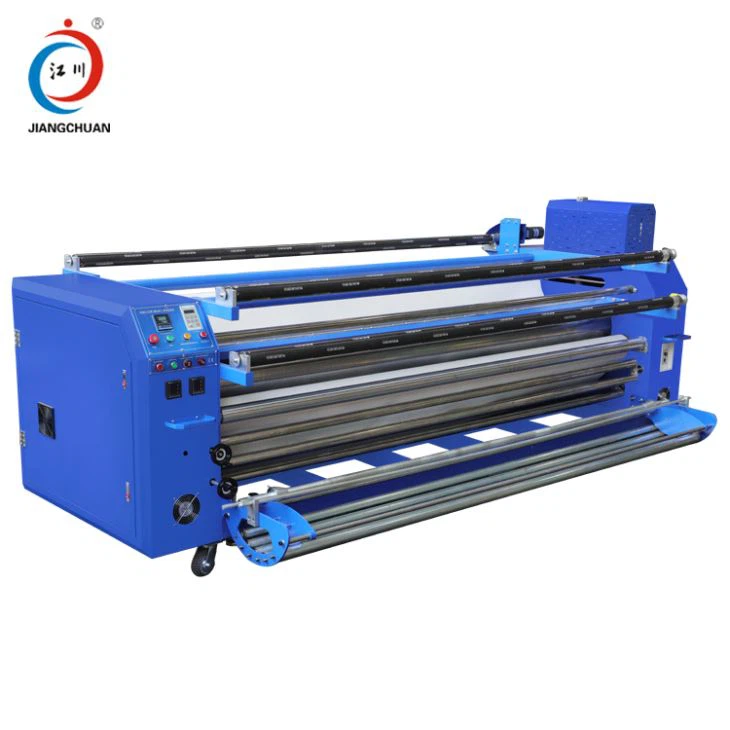

Wide Format Roll Heat Transfer Machine
Characteristics
| Brand Name | Jiang Chuan |
| Printing/Roll Width | 3200 mm/126 inch |
| Roller diameter | 420 mm/15.7 inch |
| Voltage | 220/380 3 phases |
| Power | 48 KW |
| Speed | 0-8M/Min |
| Weight | 2500 KG |
| Packing Size | 429*231*203 CM |
| Feeding Method | Top feeding |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High-Temperature Resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Temperature Range | 0-399℃ |
| Scope Of Delivery | Roller heat transfer machine, Power cable without a plug , some electronic spare parts for free |
| Note | Custom size by your special order |
| Customized machine to work with different power supplier |
Features
1. Roller surface with Teflon coat, high hardness, wear resistant, anti-sticking
2. Digital temperature and speed hardness, wear resistant, anti-sticking
3. Oil heating, temperature uniformity (±1-2°C) no deviations of color.
4. Using imported heating pipes, heat evenly, durable; imported blankets which is not easy to deviate.
5. The blanket is detachable,and not easy to burn;with belts putting device for installing and fixing the belts.
6. Without smoke and abnormal odour during working.
