Description
Technical Parameters

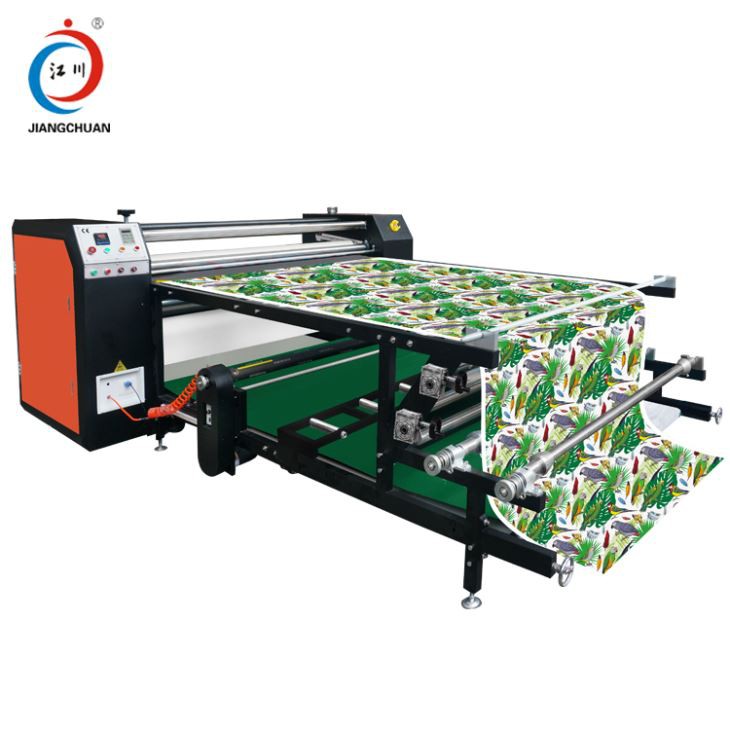

Fabric Roller Heat Transfer Machine
Technical Parameters
| Media Width | 1700 mm 67 inch |
| Diameter of Drum | 420 mm 16.5 inch |
| Transfer Speed | 0-8m/min |
| Reated power(KW) | 30KW |
| Voltage(V) | 220/380 |
| Fed-in media | Transfer paper,fabric,protective paper |
| Voltage / Heating Power | 220/380/440/480 Three phase four wire |
| Machine Size | 2670*1570*1700mm |
| Packing Dimension | 2840x1680x1900mm |
| Weight | 2200 KG |
| Note | Custom size by your special order. |
| Customized machine to work with different power supplies | |
| Recommend compressor | Required |
| Color | Black+Orange |
| Worktable | Include |
(1) This type machine is suitable for producing the materials of textile,silk,tilt,canvas in all shapes.
(2) For continuous production consideration, the second heat transfer paper roll loading is also equipped on this machine. In this way, fabric material is also maximum saved.
(3) Shutdown blanket with full separation,without waiting.
(4) Equipped with continuous speed adjustment system,you can adjust printing speed as you need.
