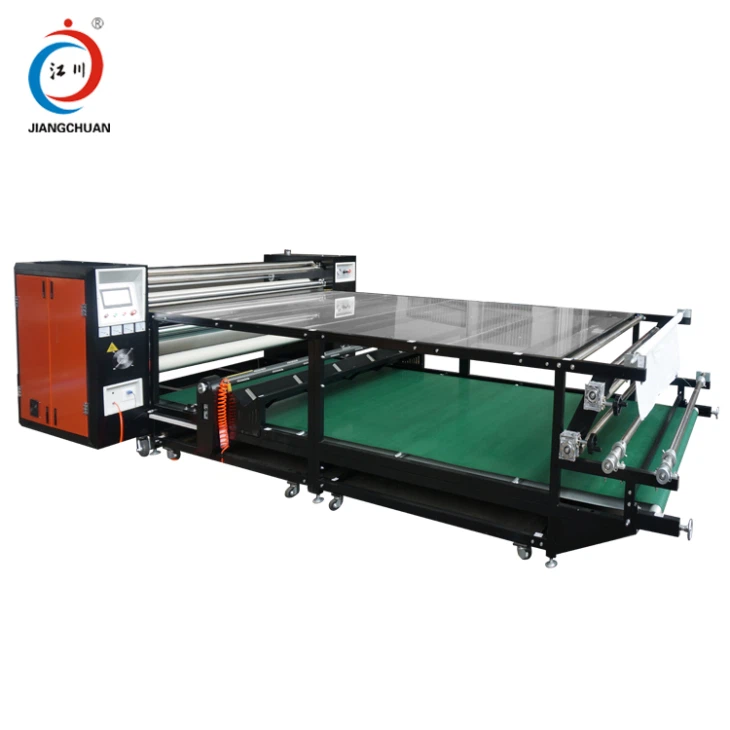

Oil Roller Heat Press Machine

Rotary heat presses with the new oil heated drum system will increase production, reduce seconds, and save on energy costs. High productivity, quality engineering design and conscientious after-the sale service are all good reasons for investing for all needs in dye-sub printing or textile dye fixation.

Send Inquiry

Description

Technical Parameters

Oil Roller Heat Press Machine

Technical Parameters

Media Width	1700 mm 67 inch
Blanket width	1650mm 65inch
Diameter of Drum	420 mm 16.5 inch
Transfer Speed	0-8m/min
Reated power(KW)	30KW
Fed-in media	Transfer paper,fabric,protective paper
Voltage(V)	220/380/440/480 Three phase four wire
Machine Size	267015701700mm
Packing Dimension	2840x1680x1900mm
Weight	2200 KG
Note	Custom size by your special order.
Note	Customized machine to work with different power supplies
Recommend compressor	Required
Color	Black
Worktable	Include

Product Description

1.A new self contained, oil heated drum system assures uniform heat across the width of the

cylinder and the lowest possible power consumption.

2.Operating efficiency is 2-3 times higher than that of last generation

3.Low noise and stable speed
4.No cooling machine is needed and the blanket can be separated from the oil tank
5.Tension of the blanket can be adjusted more easily
6.Convenient operation with power-failure protection function
7.Electronic digital display temperature control.
8.Both thermal transferring and low temperature transferring are available
9.Perfect result of transferring
10.It uses oil tank to get more even temperature output.
11.Precise mechanical structure and installing rollers to the machine
12.Blanket can be separated from oil tank easily

JC-26E H8
