Description
Technical Parameters

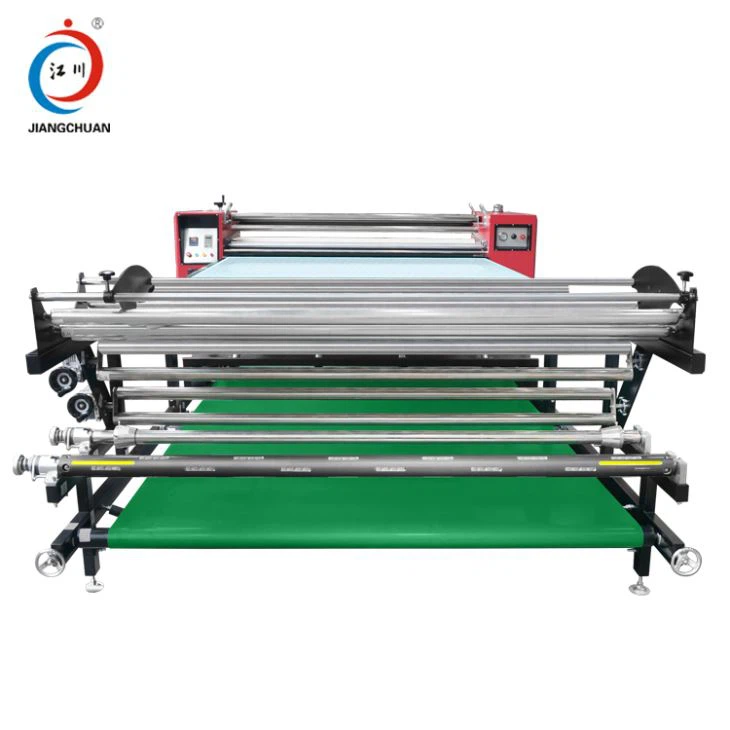

PLC Roller Heat Press Machine
Specification
| No. | JC-26B |
| Brand Name | Jiang Chuan |
| Item Name | Heat Transfer Rotary |
| Printing/drum width | 1700 mm 67 inch |
| Roller diameter | 600 mm 23.6 inch |
| Voltage | 220V/380V/440V/480V |
| Rated output | 46 KW |
| Speed | 0-10m/min |
| Weight | 2000 KG |
| Feeding Method | Top feeding |
| Working Table | Including |
| Other Size | Available |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High temperature resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Drum | Oil 100% |
| Temperature range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Color | Customized |
| Main machine packing Size | 274*168*190 CM |
| Worktable packing Size | 244*67*135 CM |
| Warranty | 1 year |
| MOQ | 1 set |
Description
◆PLC touch screen controller panel in one panel with simple and elegant, circuit board is in external surface in order to extend the components long life.
◆Automatic smart roller skew adjustment system, it make the normal position of carpet on continuous printing running.
Advantages
1 Ideal machine to print on roll to roll fabrics and cut pieces
2 Easy operation through continuous system
3 Electronic contactor switching for noise free and zero maintenance
4 Rewind roller adopted to roll the finished printed paper
5 Easy to use digital micro controller to control all the parameters like, drum rotation, temperature etc
6 Speed can be adjusted as per the printing cycle .
