Description
Technical Parameters
Textile Roller Printing Machine
Specifications of Textile Roller Printing Machine
| Model | Textile Roller Printing Machine |
| Roller width（m） | 1.7m |
| Roller diameter（mm） | 420mm |
| Voltage（V） | 220V/380V |
| Power（KW） | 26KW |
| Temp.range（°C） | 0-390°C |
| Speed（m/min） | 2-3m/min |
| Weight(KG) | 1800KG |
| Packing size(CM) | 263x139x160cm |
| Fed-in media | Transfer paper,fabric,protective paper |
| Feeding Method | Top Feeding |
Advantage of Textile Roller Printing Machine
1.Explosion proof device played a role in safety protection
2.The external tank has a thermal insulation layer
3.Automatically correct the adage of blanket
4.Dupont raw material for the blanket
5.To prevent scissors and other obstacles involved
6.Regulate service power,saving energy
7.Manual separation device in case of power cut,increase security
8.Take up waste paper in roll
9.Adjust pressure device
10.Packing paper keeps blanket clean

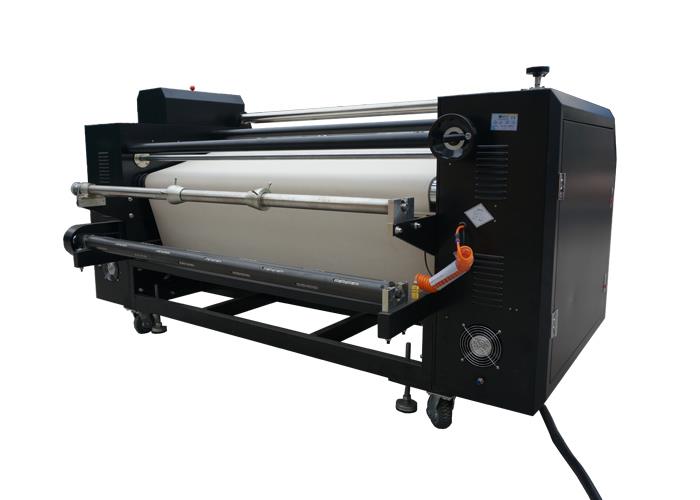

Details Image of Textile Roller Printing Machine
