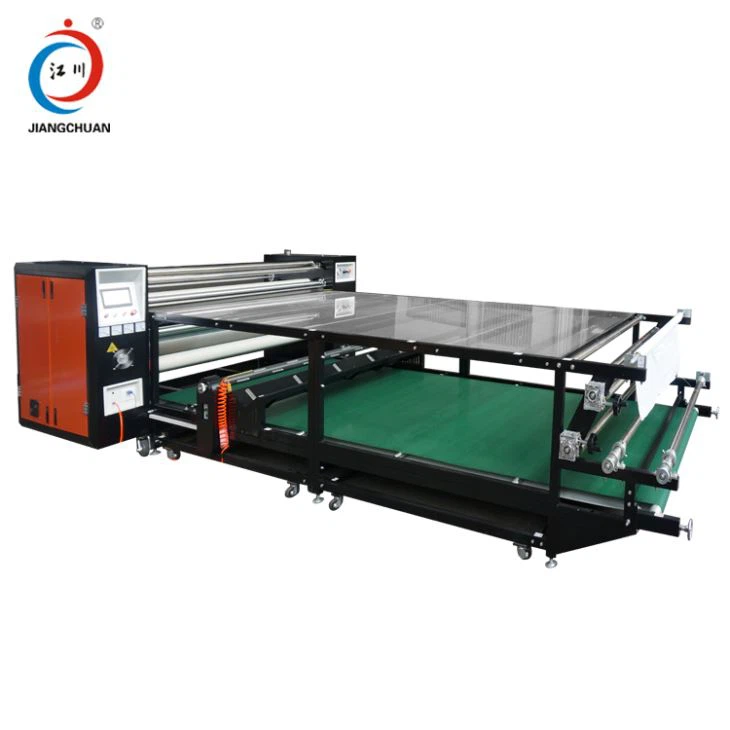

1.8m Press Sublimation Machine
Specification
| No. | JC-26B |
| Brand Name | Jiang Chuan |
| Item Name | Heat Transfer Rotary |
| Printing/drum width | 1800 mm 70.8 inch |
| Roller diameter | 420 mm 16.5 inch |
| Voltage | 220V/380V/440V/480V |
| Rated output | 27 KW |
| Speed | 0-8m/min |
| Weight | 1900 KG |
| Packing size | 2730 x 1390 x1600 mm |
| Feeding Method | Top feeding |
| Working Table | Including |
| Other Size | Available |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High temperature resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Drum | Oil 100% |
| Temperature range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Color | Customized |
Characteristics
1) It adopts advanced oil-warming technology and liquid circular heat conduction, with even heating and high thermal conductivity.
2) External oil-filling tank and auto-close valve make it convenient to change heat transfer.
3) A design of pneumatic pressure system make rotary printing machine do perfect transfer.
4) Can let the blanket to be automatic correction, ensure the normal orbit, make the efficiency of heat transfer enhance maintain the transfer quality guaranteed.
FAQ. Frequently Asked Questions 1. What kind of materials does the machine use for? This Model For printing sheet materials and roll materials, more convenient for roll materials. Fabric cotton content below 30%.
|
2. Is the machine sent completely assembled or is some assembly required? You will need printer, sublimation ink and paper to print the pictures you want. And then our machine transfer the pictures from paper to textile.
|
3. Does the oil in the drum ever have to be changed? It is not often to change the oil. You will change the oil about 2 years later.
|
4. How to control machine quality? What we value most is the quality of the machine. We want to provide the best quality, longest using life, safest, most pro-environment, most saving labor and cost machines to our customers. So we built quality control department to control and check the quality of our machines during producing and before packing. We make sure that every machine sold from our company is with the best quality we can provide. |
