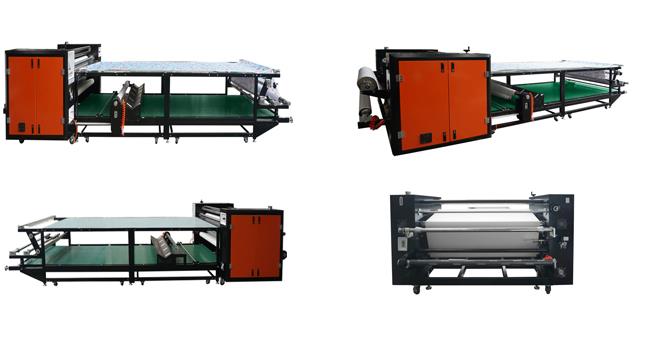

Roll Heat Press Sublimation Machine
Specification
| No. | JC-26B |
| Brand Name | Jiang Chuan |
| Item Name | Heat Transfer Rotary |
| Printing/drum width | 1800 mm 70.8 inch |
| Roller diameter | 420 mm 16.5 inch |
| Voltage | 220V/380V/440V/480V |
| Rated output | 27 KW |
| Speed | 0-8m/min |
| Weight | 1900 KG |
| Packing size | 2730 x 1390 x1600 mm |
| Feeding Method | Top feeding |
| Working Table | Including |
| Other Size | Available |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High temperature resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Drum | Oil 100% |
| Temperature range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Color | Customized |
Basic characteristics
– Sublimation printing press with 2 work boards;
– Temperature adjustment from 0 to 399°C;
– Electronic thermotsat;
– Manual, semi-automatic and automatic functions;
– Motorized movement of the heated plate;
– Build-in hydraulic system for pressure control;
– Weekly programmer for automatic switching on and off;
– Stroke counter;
– Touch-screen control;
Flow chat
Use the computer to devise the designed pattern,print it on the specific transfer paper through digital
printer by using sublimated ink,and then become transfer printing paper.
Let the transfer paper which has design cling to the fabric and feed together into the roller heat printing
machine.Through high temperature and high pressure,sublimation ink on the transfer paper will transfer to
fabric by pneumatolysis,printing is completed and tailor the printed fabric to become clothes.
