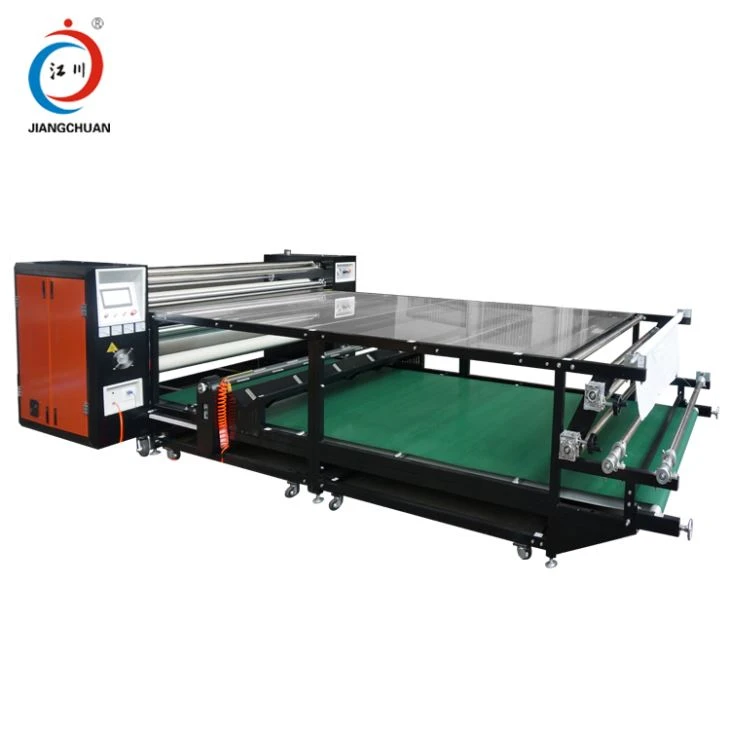

67 inch Roll Heat Press Machine
Technical Parameters
| No. | JC-26B |
| Brand Name | Jiang Chuan |
| Item Name | Heat Transfer Rotary |
| Printing/drum width | 1700 mm 67 inch |
| Roller diameter | 420 mm 16.5 inch |
| Voltage | 220V/380V/440V/480V |
| Rated output | 25.5 KW |
| Speed | 0-8m/min |
| Weight | 1800 KG |
| Packing size | 2630 x 1390 x1600 mm |
| Feeding Method | Top feeding |
| Working Table | Including |
| Other Size | Available |
| Air Compressor Required | Required |
| Blanket Material | Nomex: High temperature resistance |
| Drum Surface | Chrome: High hardness and abrasion performance |
| Drum | Oil 100% |
| Temperature range(℃) | 0-399 |
| Time range(S) | 0-999 |
| Color | Customized |
Features
◆PLC touch screen controller panel in one panel with simple and elegant, circuit board is in external surface in order to extend the components long life.
◆Automatic smart roller skew adjustment system, it make the normal position of carpet on continuous printing running.
◆The drum adopt the heating oil system, it can distribute the temperature more uniformity and stability, is more saving power and time on operation. Teflon painting surface on the roller, it has the advantage of high hardness, abrasion resistance.
Top configuration of hardware, the main wall panel and all rollers are elaborately made and reinforced.
u Chrome-plating technology being adopted for the cylinder, it has the advantage of high hardness, abrasion resistance, and anti-bonding performance and good transfer printing effect.
