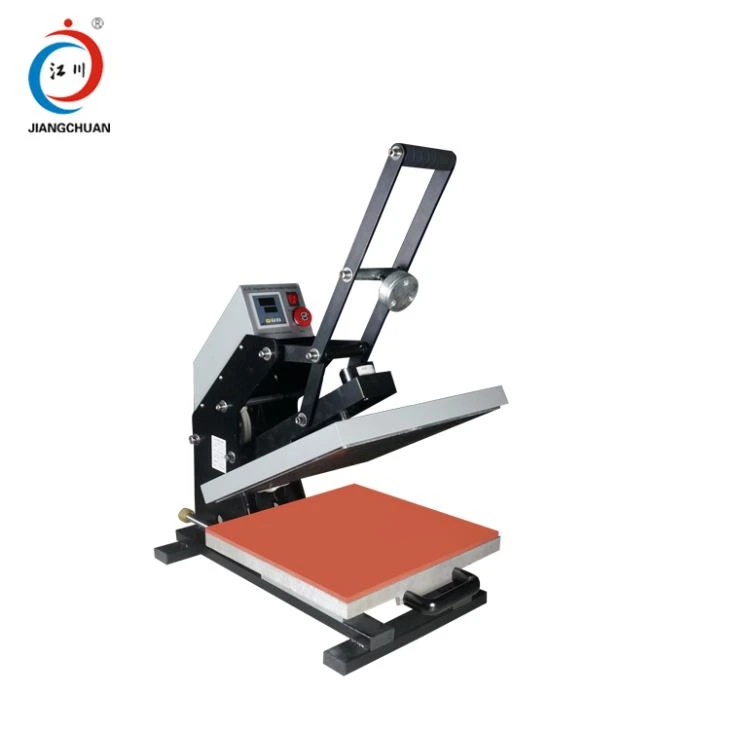

38x38 T Shirt Printing Machine
| Specification: | |
| Model No. | JC-5C-1 |
| Machine Type | Manual,Rotary ,Draw-out Heat Ex-changer |
| Controller | Digital Time & Temp. Controller |
| Voltage | 110V/220V |
| Power | 1.3kW/1.4kW |
| Time Range | 0-999sec. |
| Max. Temp. | 245°C (473°F) |
| Heating Board Size | 290x380mm |
| Swing-away | Yes |
| Under Plate | Draw-out available |
| Printing Thickness | Up to 32mm |
| Gross Weight | 19.5KG |
| Package Size | 580x330X330mm |
Advantage
Adjustable Multi-spring Balancer - Handle applies closing pressure through a spring and pressure-plate system, which allows pressure to be more evenly distributed across the entire platen when clamshell is closed.
Teflon-coated Element - Unlike other machines with bare-metal heating elements, the element on this machine is teflon coated. The surface is non-stick, preventing scorching of transfers, and does not require a separate silicone/teflon sheet.
Upgraded Elevated Lower Platen - 1/2" thick aluminum board; built-in structural support to maintain flatness. Removable and reversible hi-temp silicone pad; unlike glued-down pads, if pad ever becomes damaged, simply flip over and use the other side. Elevated lower platen allows room for t-shirts to be easily placed into and removed from machine.
Rigid Steel Frame - Machine is heavy-duty, commercial-grade, super stable and built to last.
High Pressure - Let you do a better t-shirt heat transfer. The higher the pressure, the better result on the garment.
Easy to Use - Fashion design, reasonable structure, arrives fully assembled and ready to use (printer and paper not included). Special front pressure adjust more convenient.
