Roller Heat Transfer Press Machine
Technical Parameters
| Brand name | Jiangchuan |
| Machine NO. | JC-26B |
| Heating area(CM) | 210x1700mm(8"x67") |
| Method | Sublimation Transfer Printing |
| Machine type | Multifunctional Heat Press Machine |
| Voltage(V) | 220/380V |
| Power(KW) | 10.2KW |
| Temp Range(°C) | 0-399 |
| Time Range (S) | 0-999 |
| weight (KG) | 1100KG |
| Packing Size(CM) | 248*114*155 |
| Condition | New |

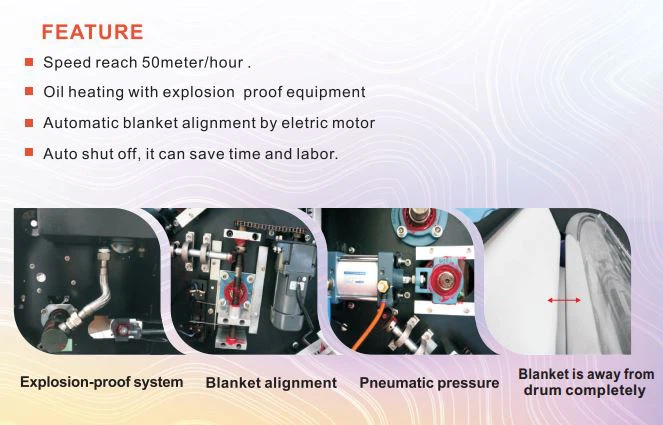

Feature
1.Roller drum is chrome-plating,it is mirror surface hardness is much better than teflon coating,wear resistant,anti-sticking.
2.Digital control for temperature and speed.Sublimation speed is 35 to 50 meters per hour.
3.Oil heating,temperature uniformity (±1-2°C) no deviations of color.
4.The blanket can be completely separated from drum.So at the end of working day,you can turn hand wheel on the top of machine to do it and leave.You don't need to wait for it to cool down.It saves your time.
5.Automatic alignment system for blanket.It keeps blanket in the center of machine.You don't need to adjust it manually.
6.Automatic pneumatic pressure. There is an air cylinder for rubber pressure roller.Usually thin fabric needs to be pressured.After you connect with an air compressor,you just need to press the "Pneumatic pressure" button for to get bigger pressure for fabric.

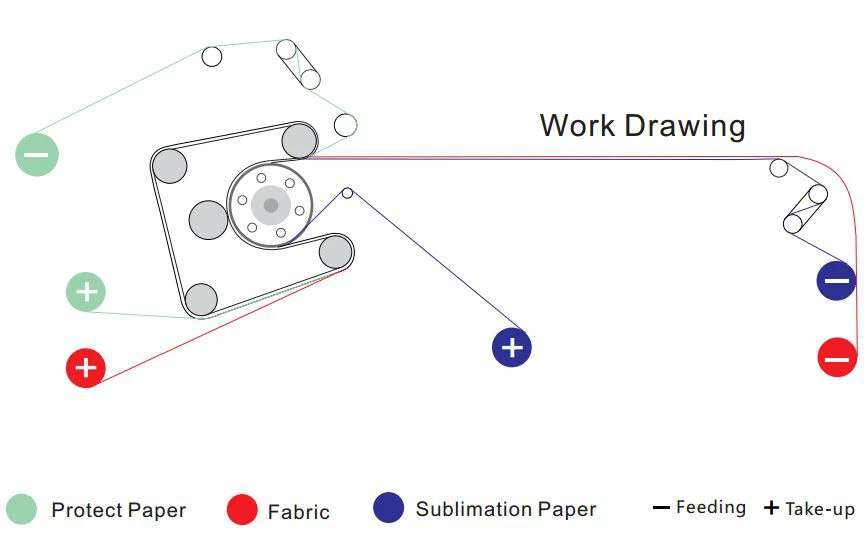

Working flow
Package

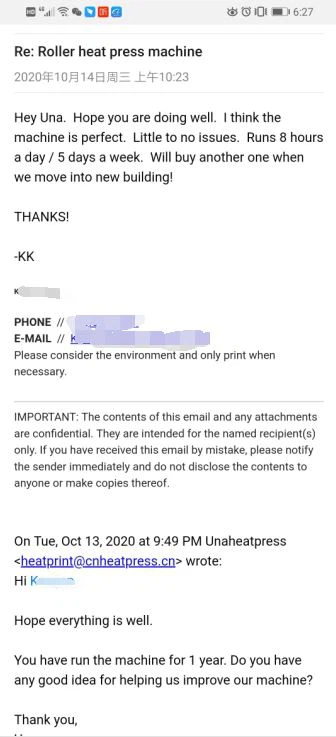

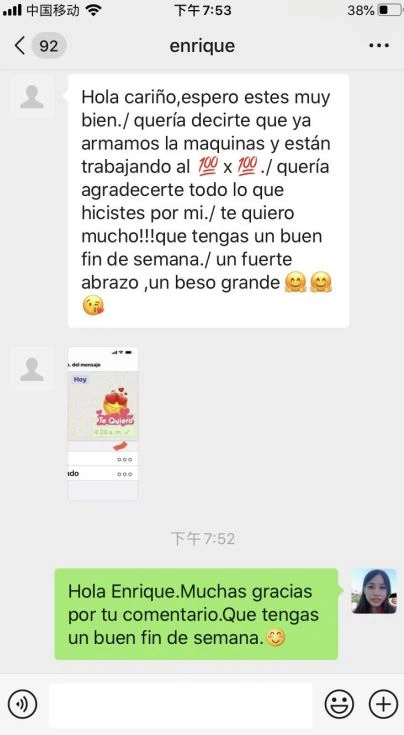

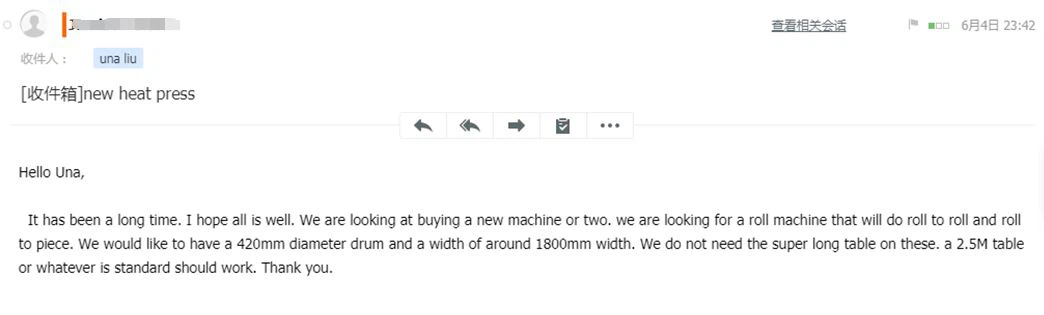

Comments from customers
Our service
1.We provide 7*24 hours before and after sales service on line.
2.Machine warranty is one year, during the warranty.
3.We work when customer's need.
About us
We are manufacturer of heat press machines for almost 20 years in Guangzhou, China. We have 5 engineers to design new machines and improve machines based on markets’ need and good ideas of customers. We test all machines with sublimation paper and fabric before shipping. We have sold a lot of machines to many countires and got very good comments.We knew if we sell products for a living,we are going to lose. What we sell is "product+service".
Contact us now.We will recommend product for you.
